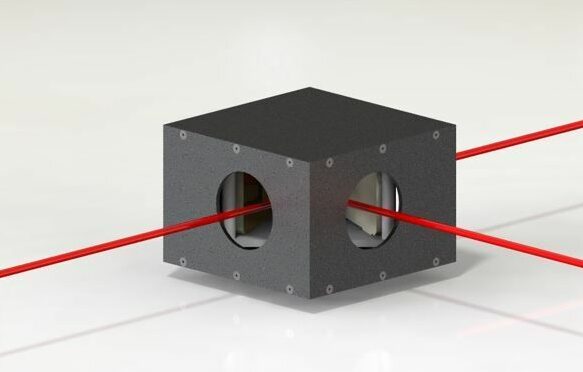

A Hollow Beamsplitting Pentamirror (HBPM) is a constant deviation device developed by PLX to duplicate the performance of a pentamirror, with added advantages. The HBPM is a powerful and versatile tool for surveying, laboratory experimentation, and a range of metrology applications. The device enables incoming light to be deviated by 90° with great accuracy while generating additional output beams. These outputs will also be at 90° from one another. The assembly is invariant and thus permits movements such as rotation without compromising either the 90° deviation or its inherent accuracy.

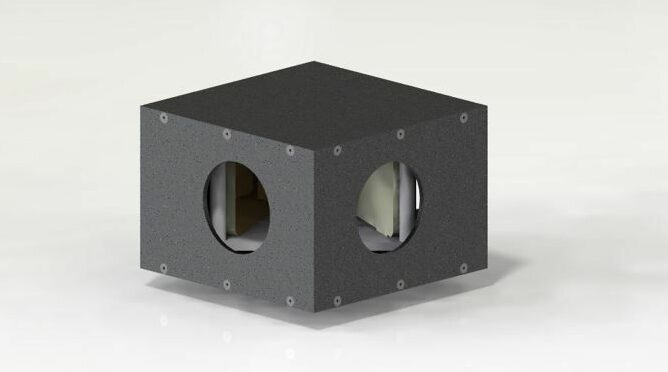

The optical elements of the Hollow Beamsplitting Pentamirror assemblies are monolithic structures made of fused silica glass and are mounted in an aluminum enclosure, with a black anodized finish. They are available in 1″ and 2″ clear aperture, with accuracies to better than 1 arc second.
PLX is a Luxium Solutions brand that has been at the forefront of developing high-quality monolithic optics for over 60 years. PLX optics can withstand and perform under the harshest environmental conditions and maintain their accuracy over time.

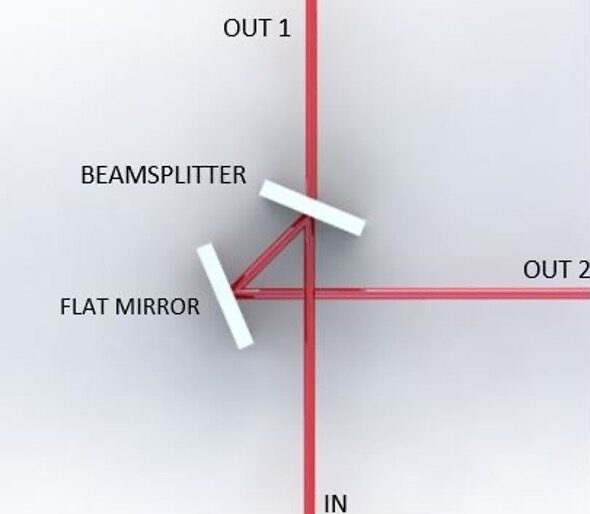

This is a combination of a flat mirror and beamsplitter mounted at 45° to each other.

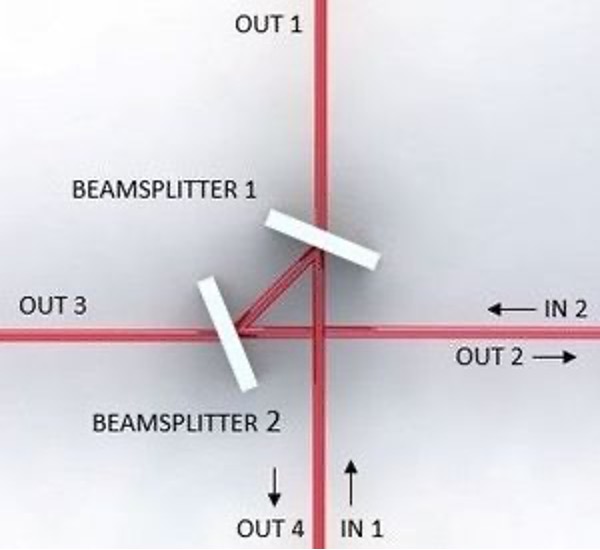

An optional configuration incorporating two beamsplitters can also be provided (shown below). This further highlights the versatility of the HBPM.
