A retroreflector is an optical device that reflects light back towards it’s source with minimal scattering. PLX Ball Mounted Hollow Retroreflectors for laser tracking are the most accurate in the industry, able to significantly improve performance while compatible with all laser tracking system manufacturers.

Available in a unique break-resistant configuration in a range of sizes and materials for specific applications. All BMHRs are equipped with standard protected silver coating for the highest durability, reflectance and distance.

PLX BMHR’s are already utilised in industries such as aerospace, defence and laboratory instrumentation around the world.

PLX is a Luxium Solutions brand that has been at the forefront of developing high-quality monolithic optics for over 60 years. PLX optics can withstand and perform under the harshest environmental conditions and maintain their accuracy over time.

Key Features

State of the art accuracy
Compatible with all laser tracking systems
Designed for harsh environments
Can be coated for maximisation from UV to IR
Already used in various industries around the world
Customisation available

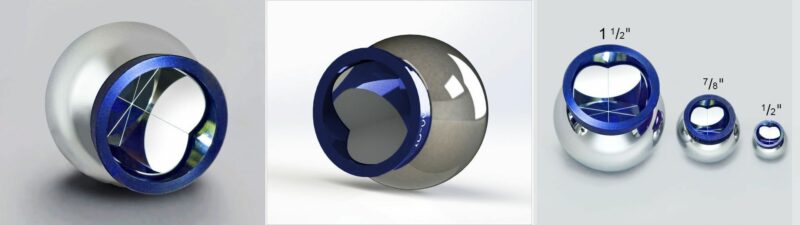

BMR Products

Hydrophobic Ball Mounted Hollow Retroreflectors (HydroBMR) Longest laser tracking range due to superior optical accuracy. Water Repellent Hydrophobic Coating. Durable, easy-to-clean and low maintenance. Stainless steel ball material with sphericity of 0.00005″. Guaranteed compatibility with laser tracking systems from all major manufacturers. Custom “Knife Edge” design option available upon request, enhances beam quality, eliminates the cause of obscuration. Full specs and detailed description on the PLX website here.
Stainless Steel Ball Mounted Hollow Retroreflectors (BMRs) Longest laser tracking range & performance due to superior optical accuracy. Stainless steel ball material with sphericity of 0.00005″. Guaranteed compatibility with laser tracking systems from all major manufacturers. Custom “Knife Edge” design option available upon request, enhances beam quality, eliminates the cause of obscuration. Full specs and detailed description on the PLX website here.
Durable Ball Mounted Hollow Retroreflectors (DBMRs) Longest laser tracking range due to superior optical accuracy. All metal design with increased durability. Higher resistance to shock. Stainless Steel ball with sphericity of 0.00005″. Guaranteed compatibility with laser tracking systems from all major manufacturers. Full specs and detailed description on the PLX website here.
Ceramic Ball Mounted Hollow Retroreflectors (BMRNMs) Longest laser tracking range due to superior optical accuracy. Low thermal conductivity. Lightweight combined with the highest performance. Guaranteed compatibility with laser tracking systems from all major manufacturers. Custom “Knife Edge” design option available upon request, enhances beam quality, eliminates the cause of obscuration. Full specs and detailed description on the PLX website here.
