PLX Electronic Autocollimators

cropped_cropped_ELECTRONIC_AUTOCOLLIMATORS_banner (1)

An electronic autocollimator is a digital, high-precision optical instrument that projects a collimated beam of light onto a reflective surface, then captures the reflected beam on a sensor to calculate angular changes.

PLX Autocollimator and Alignment Telescopes are high-accuracy measurement instruments capable of resolution down to fractions of an arc-second. They are primarily used to detect and measure small angular deviations. Included is a complete software suite for recording and documenting measurements.

PLX is a Luxium Solutions brand that has been at the forefront of developing high-quality monolithic optics for over 60 years. PLX optics can withstand and perform under the harshest environmental conditions and maintain their accuracy over time.

Key Features

Resolution down to fractions of an arc-second
Primarily used to detect and measure small angular deviations
Complete software suite included

Products

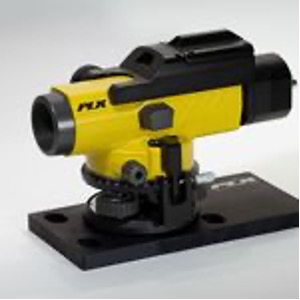

ACT-25B Electronic Autocollimator Used to detect and measure small angular deviations. 0.01 arc second resolution. Exceptional focusing range: from 30cm to infinity. Built-in laser for coarse alignment. Long-lasting LED light source. The full-featured software suite allows you to record and document your measurements. Connects to your computer via a USB port. Fully integrated mount and leveling capability. Robustly designed all-in-one unit. Full specs and detailed description on the PLX website here

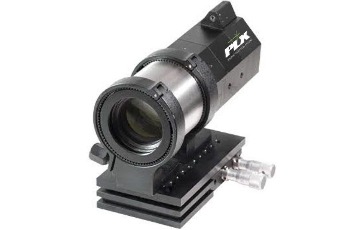

ACT-HR High-Resolution Electronic Autocollimator High-resolution measurement capability down to 0.01 arc second or 0.05 μRad. Real time measurement of angular displacement. Automatic angle deviation display. Relative measurements. Built-in pan and tilt adjustments. Built-in coarse aiming laser. Multiple results display. Low Light – low reflection capability. Reticle targets (single or multiple). Data logging with detailed statistics. Software controlled electronic shutter & gain. Data exporting to another computer via RS232 or TCP/IP. Video with playback, snapshot files. Complete with full software suite for recording and documenting measurements. Full specs and detailed description on the PLX website here

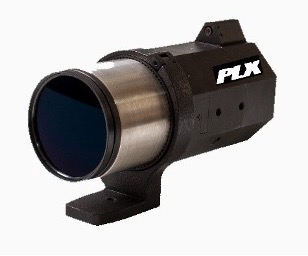

ACT-WF High-Resolution Wide Field of View Electronic Autocollimators High-resolution measurement capability down to 0.01 arc second or 0.05 μRad. Real time measurement of angular displacement. Automatic angle deviation display. Relative measurements. Built-in pan and tilt adjustments. Built-in coarse aiming laser. Multiple results display. Low Light – low reflection capability. Reticle targets (single or multiple). Data logging with detailed statistics. Software controlled electronic shutter & gain. Data exporting to another computer via RS232 or TCP/IP. Video with playback, snapshot files. Complete with full software suite for recording and documenting measurements. Full specs and detailed description on the PLX website here

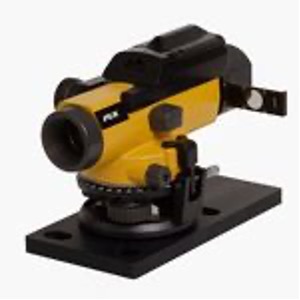

ACT-25F0 Autofocusing Electronic Electronic Autocollimator Used to detect and measure small angular deviations. Motorized focusing knob controlled via software supplied 0.01 arc second resolution. Built-in laser for coarse alignment. Long-lasting LED light source. The full-featured software suite allows you to record and document your measurements. Connects to your computer via a USB port. Fully integrated mount and leveling capability. Robustly designed all-in-one unit. Complete with a full software suite for recording and documenting measurements. Full specs and detailed description on the PLX website here

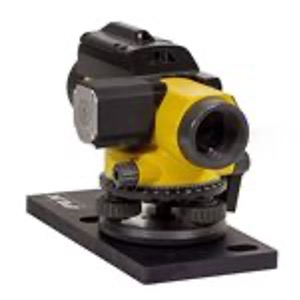

ACT-25LA Laser Analysing Electronic Autocollimator Laser beam analyzing capability Used to detect and measure small angular deviations. 0.01 arc second resolution. Built-in laser for coarse alignment. Long-lasting LED light source. The full-featured software suite allows you to record and document your measurements. Connects to your computer via a USB port. Fully integrated mount and leveling capability. Robustly designed all-in-one unit. Complete with a full software suite for recording and documenting measurements. Full specs and detailed description on the PLX website here

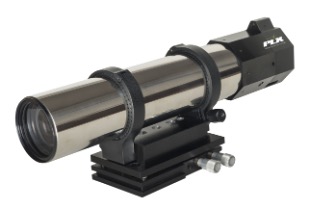

Anglemeter U3 Large field of view. Real time measurement of angular displacement. Automatic angle deviation display. Relative measurements. Built-in coarse aiming laser. Multiple results display. Optional Pan and tilt assembly Data logging with detailed statistics. Software controlled electronic shutter & gain. Data exporting to another computer via RS232 or TCP/IP. Video with playback, snapshot files. Complete with full software suite for recording and documenting measurements. Full specs and detailed description on the PLX website here

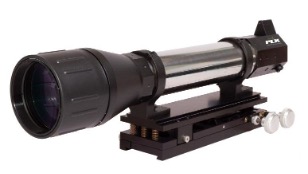

ACT-HR100 High-Resolution Electronic Autocollimator Large Clear Aperture of 100mm. High-resolution measurement capability down to 0.01 arc second or 0.05 μRad. Real time measurement of angular displacement. Automatic angle deviation display. Relative measurements. Built-in pan and tilt adjustments. Built-in coarse aiming laser. Multiple results display. Low Light – low reflection capability. Reticle targets (single or multiple). Data logging with detailed statistics. Software controlled electronic shutter & gain. Data exporting to another computer via RS232 or TCP/IP. Video with playback, snapshot files. Complete with full software suite for recording and documenting measurements. Full specs and detailed description on the PLX website here
