PLX Hollow Retroreflectors

A retroreflector is an optical device that reflects light back towards it’s source with minimal scattering. PLX hollow retroreflectors have state of art accuracy and a unique ability to withstand harsh environments. The retroreflectors can be coated for maximisation over any spectral range from UV to far IR and can be customised to fit your specific needs.

PLX hollow retroreflectors are already utilised in industries such as aerospace, defence and laboratory instrumentation around the world.

PLX is a Luxium Solutions brand that has been at the forefront of developing high-quality monolithic optics for over 60 years. PLX optics can withstand and perform under the harshest environmental conditions and maintain their accuracy over time.

Key Features

State of the art accuracy
Designed for harsh environments
Can be coated for maximisation from UV to IR
Already used in various industries around the world
Customisation available

Hollow Retroreflector Configurations

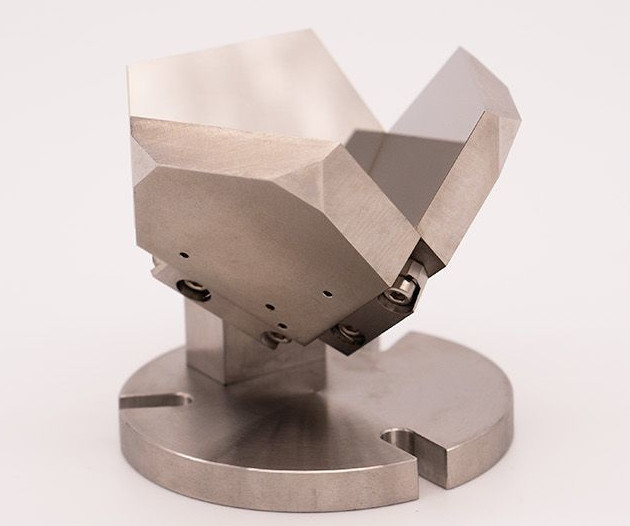

All Metal Hollow Retroreflectors (AMHRs) Perfect for fusion research and extreme environmental conditions. Designed to withstand: High Temperatures (>400°C) High Magnetic Fields High Radiation High Vacuum conditions Excellent shock and vibration resistant Can work with other metals Standard accuracy range: 20 to 100 arc second. Higher accuracy than 20 arc second available upon customer request. Customised applications are available. Full specs and detailed description on the Luxium Solutions website here.

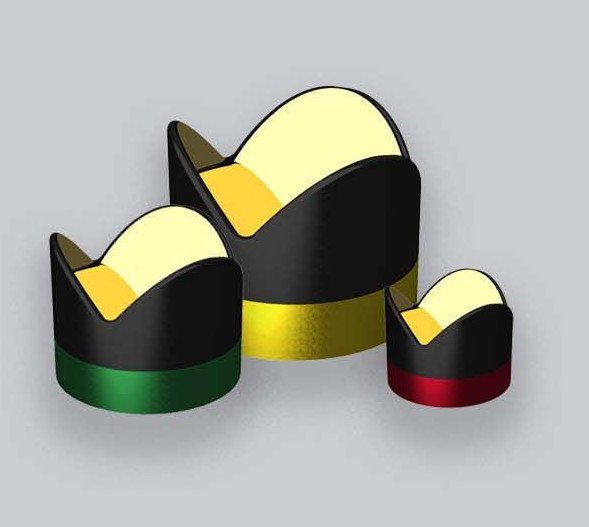

Ultra Low-Profile Retroreflectors (ULPRs) Superb optical stability over temperature, shock and vibration. Single compact and robust unit. Light-weight with protective aluminum housing. Compatible with all major mounting systems. Ideal for bore/collar mountings. Ideal for FTIR interferometer applications Standard metallic coatings meet all applicable MIL specs, custom coatings available. Custom “Knife Edge” design option available upon request, enhances beam quality, eliminates the cause of obscuration. Full specs and detailed description on the Luxium Solutions website here.

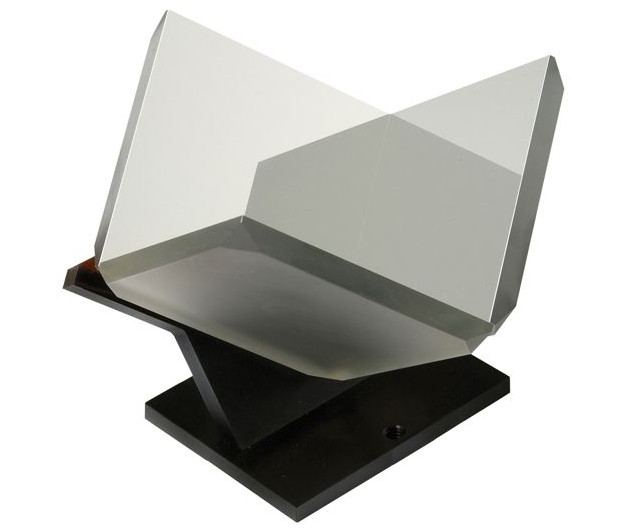

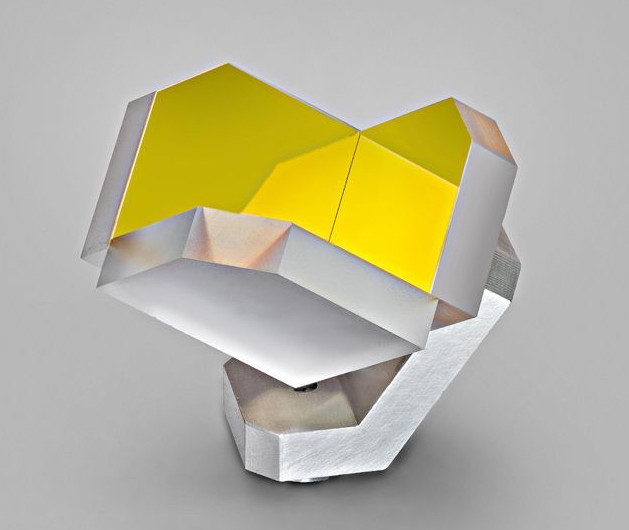

Hard-Mounted Hollow Retroreflectors (HMHRs) Invariant mirror configuration with extraordinary beam return accuracy. Mirrors can be coated for maximization over a spectral range, from UV to far IR. For critical applications, such as Michelson interferometers. Performs well in harsh environmental conditions. Custom “Knife Edge” design option available upon request, enhances beam quality, eliminates the cause of obscuration. Full specs and detailed description on the Luxium Solutions website here.

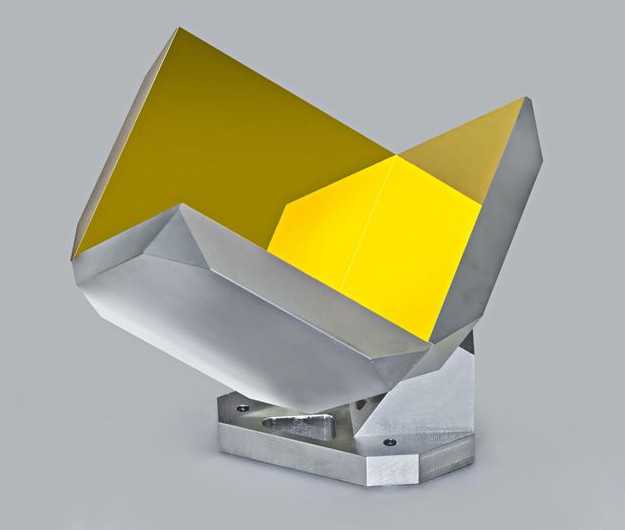

Ultra Stable Hard-Mounted Hollow Retroreflectors (USHMs) Invar steel mounting for exceptional stability and accuracy. Performs well in harsh environmental applications. Can customise mount and material. Available in custom configurations and with a variety of coatings. Custom “Knife Edge” design option available upon request, enhances beam quality, eliminates the cause of obscuration. Full specs and detailed description on the Luxium Solutions website here.

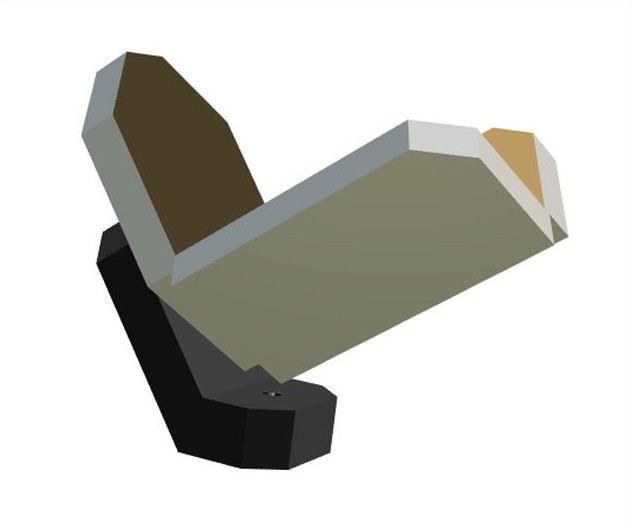

LPR-Series Low Profile Retroreflectors Exceptional mechanical stability and accuracy due to monolithic construction. For critical applications such as Michelson interferometers. Compact design for critical OEM applications. Self-compensating mirror configuration with excellent beam return accuracy. Can be mounted in any orientation via integral post. Mirrors can be coated for maximization over any spectral range, from UV to far IR. Vacuum compatible. Versions tested to withstand military and harsh space environments. Custom “Knife Edge” design option available upon request, enhances beam quality, eliminates the cause of obscuration. Full specs and detailed description on the Luxium Solutions website here.

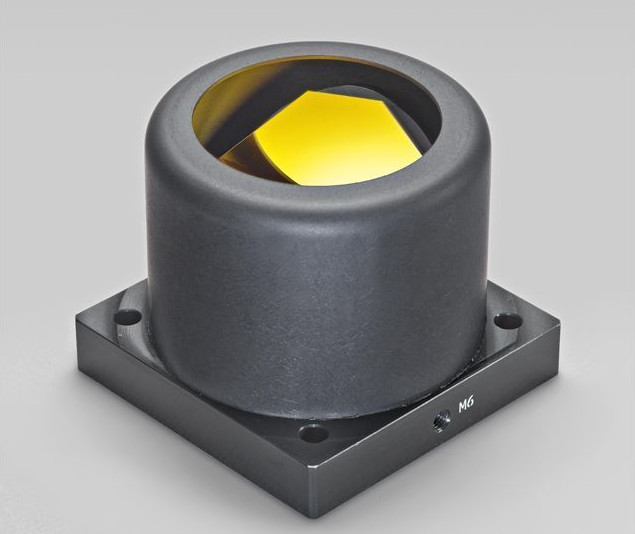

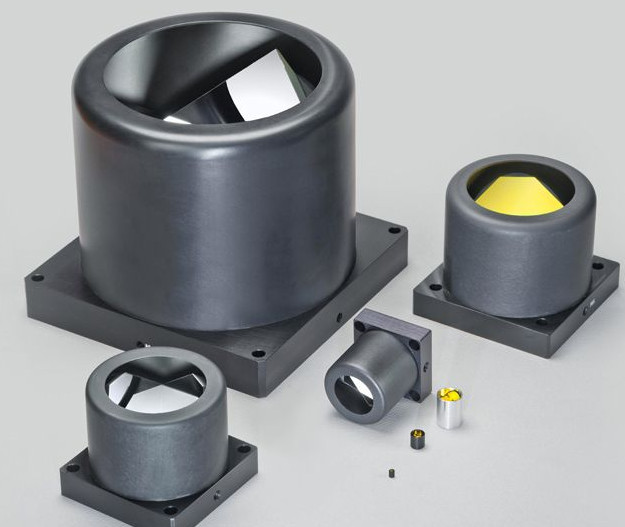

Omni Wave Hollow Retroreflectors (OWHRs) Parallel incident light returned with great accuracy to the light source regardless of the OWHR’s physical orientation. Proprietary configuration with cushioned mounting, provides extra protection for better handling and resistance to shock. Compatible with all major mounting systems. Standard metallic coatings meet all applicable MIL specs, custom coatings available. Custom “Knife Edge” design option available upon request, enhances beam quality, eliminates the cause of obscuration. Full specs and detailed description on the Luxium Solutions website here.
Ball Mounted Hollow Retroreflectors (BMRs) Available in a range of materials and sizes for specific applications. All BMRs are coated with a standard protective silver coating for high durability, reflectance and distance. Compatible with all laser tracking systems. Full specs and detailed description on the Luxium Solutions website here.

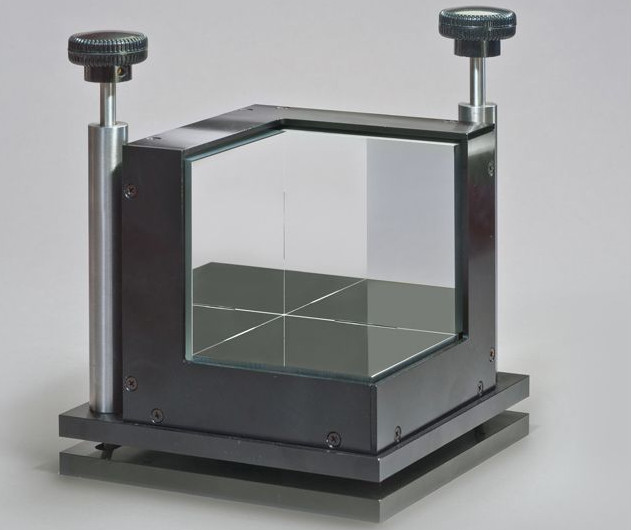

PLX Tool Cube Typically used with two or more lasers or autocollimators to establish orthogonal axes. Intuitive alignment of items at right angle or parallel to each other. Less than 1 arc second deviation between any two of the three front surface mirrors. Available in 3 inch and 5 inch mirror faces. Standard mirror coating is protected aluminum, custom coatings available. Custom “Knife Edge” design option available upon request, enhances beam quality, eliminates the cause of obscuration. Full specs and detailed description on the Luxium Solutions website here.

If you need a quote or would like more information on this product then please get in touch

Retroreflector Selector Chart

PROPERTIES	All Metal	Ultra Low-Profile	Omni Wave	Hard Mount	USHM
Weight	Heaviest	Very Light	Heavy	Very Light	Light
Overall Size	Small	Smallest	Large	Small	Small
Apex Location Control	Good	Good	Fair	Excellent	Excellent
Vacuum Compatible	Excellent	Excellent	Not Standard	Not Standard	Excellent
Mounting Stiffness	Excellent	Excellent	Fair	Good	Excellent
Mechanical Stability	Excellent	Excellent	Excellent	Excellent	Excellent
Thermal Stability	Good	Excellent	Good	Very Good	Excellent
Operating temperature range	Widest	Wide	Wide	Wide	Wide
Vibration	Excellent	Very Good	Good	Very Good	Excellent
Shock Resistance	Excellent	Very Good	Excellent	Very Good	Excellent
Protective Housing	No	Yes	Yes	No	No
APPLICATIONS	All Metal	Ultra Low-Profile	Omni Wave	Hard Mount	USHM
Metrology	Excellent	Excellent	Excellent	Excellent	Excellent
OEM Use	Excellent	Excellent	Fair	Excellent	Excellent
Motion Control	Good	Very Good	Good	Excellent	Excellent
OEM Interferometry	Good	Good	Good	Excellent	Excellent
OEM Spectroscopy	Good	Good	Good	Excellent	Excellent
Laboratory	Excellent	Excellent	Excellent	Good	Good
Industrial	Excellent	Excellent	Excellent	Good	Good
Nuclear Fusion	Excellent	Good	Good	Good	Good
